Description

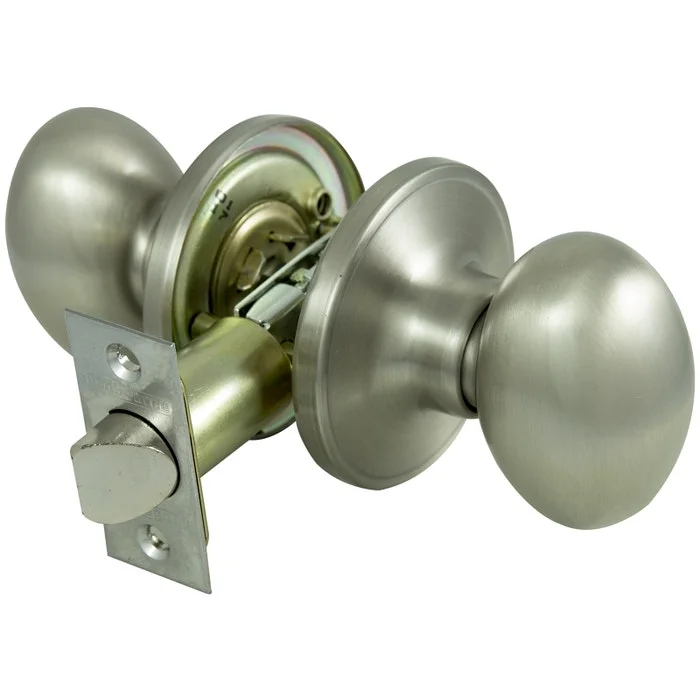

For hall and closet doors, all interior doors where a simple latch is all that is required. Both knobs always free, no locking mechanism. Adjustable six-way (2-3/4 in and 2-3/4 in) radius corner fixed face plated latch. Radius round corner strike. Fits doors from 1-3/8 to 1-3/4 in thick.

Detailed Product Specifications

Manufacturer Part Number:TYLP30V-PS

Unit of Measure:CD

Feature:Patented adjustable latch of 2-3/8 to 2-3/ 4 in (60 to 70 mm) backset fits most doors

Backset Size:2-3/8 to 2-3/4 in

Backset Type:Adjustable

Bolt Throw Size:12.5 mm

Cross Bore Diameter:2-1/8 in

Design:Egg

Door Thickness:1-3/8 to 1-3/4 in

Edge Bore Diameter:1 in

Faceplate Size:25.2 x 56.7 mm

Finish:Satin Nickel

Latch Type:6-Way Adjustable

Material:Metal

Mounting Type:Screw

Projection Size:64.4 mm

Strike Size:44 x 57 mm

Strike Type:Full Lip Round Corner

Suitable for:1-3/8 to 1-3/4 in THK Doors

Throw Length:12.5 mm
