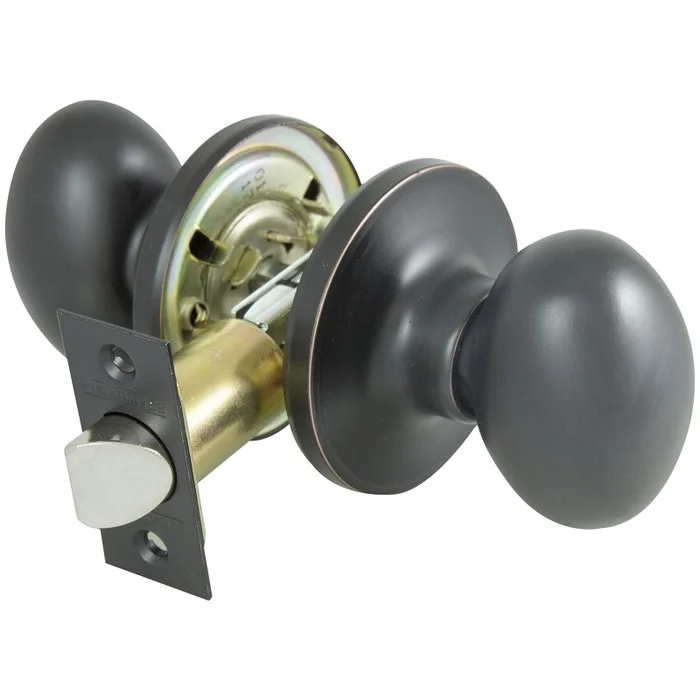

Description

For hall and closet doors, all interior doors where a simple latch is all that is required. Both knobs always free, no locking mechanism. Adjustable 6-way (2-3/4 in 2-3/4 in) latch.

Detailed Product Specifications

Manufacturer Part Number:TYLX730V-PS

Unit of Measure:CD

Feature:Adjustable latch of 2-3/8 to 2-3/4 in (60 to 70 mm) backset fits most doors

Feature:Adjustable Backset: 2-3/8 in or 2-3/4 in (60 mm or 70 mm)

Feature:Fits 1-3/8 to 1-3/4 in (35 to 45 mm) Door Thickness

Feature:ANSI Grade 3 standard

Backset Size:2-3/8 2-3/4 in

Backset Type:Adjustable

Bolt Throw Size:12.5 mm

Color:Bronze

Commercial/Residential:Residential

Cross Bore Diameter:2-1/8 in

Dimensions:66.3 mm W x 163.8 mm D

Door Thickness:1-3/4 to 1-3/8 in

Edge Bore Diameter:1 in

Faceplate Size:25.2 x 56.7 mm

Finish:Aged Bronze

Includes:Interchangeable Faceplates

Latch Type:6-Way

Material:Metal

Mounting Type:Screw

Projection Size:64.4 mm

Security Grade:Grade 3

Strike Size:44 x 57 mm

Strike Type:Full Lip Round Corner

Throw Length:1 in
