Description

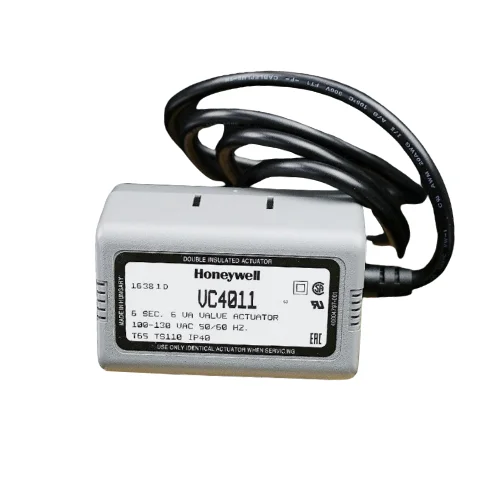

The Honeywell Resideo VC4011ZZ00/E is an SPST 2-position actuator with plastic housing.Thisoperates at 120V and 50/60 Hz with 60 psi (400 kPa) close-off maximum differential pressure.UL and CSA Listed.

The device has a cable electrical connection and a self-alignment shaft adapter.Thishas features that work during power losssuchas a fail-safe that drives back the actuator to a safe position and a manual lever that opens the valve.

The actuator provides a quick opening/closing of the valve at 6 seconds nominal timing controlled by an aquastat, room thermostat, or flow switch.It handles the glycol solution hot/chilled water flow to 60% concentration.

The VC4011ZZ00/E is suitable for on-off zone control of heating/cooling systems, individual fan coils, baseboard radiators, or convector applications.This model is compatible with VC Series balanced hydronic valves.
