Description

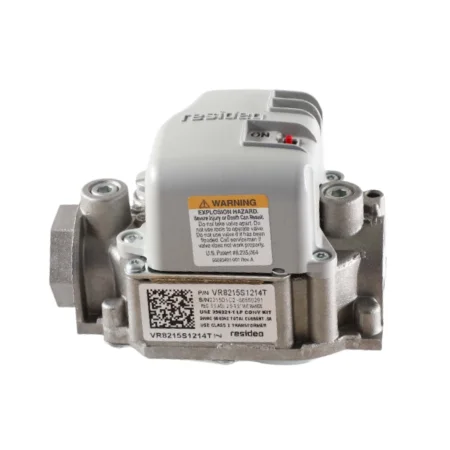

The Resideo VR8215S1214T is a dual direct ignition convertible gas valve that operates with 24 VAC at 50/60 Hz.This device includes a manual valve, two automatic operators, and a pressure regulator.CSA Listed.

Features:

• Fast-Fast Opening
• 1/8″ NPT with Plug
• 1/2″ x 1/2″ Inlet/Outlet Size
• 1/4″Quick-Connect Male Terminals
• 1/2 psi (3.5 kPa) Maximum Pressure
• 3.4” W.C. (0.85 kPa) Regulator Setpoint
• ON-OFF Lighting Sequence
• Two Valves that Function Independently
• Access to Parts from the Top of the Control
• Solenoid Operated Opens on Thermostat Call for Heat; Closes when Ends
• Diaphragm Operated Opens under Regulator Control; Closes when Interrupted

The VR8215S is suitable for use with hot surface or direct spark systems and gas-fired appliances.It can be mounted in any orientation and the reduced installation turning radius makes it much easier to install.
