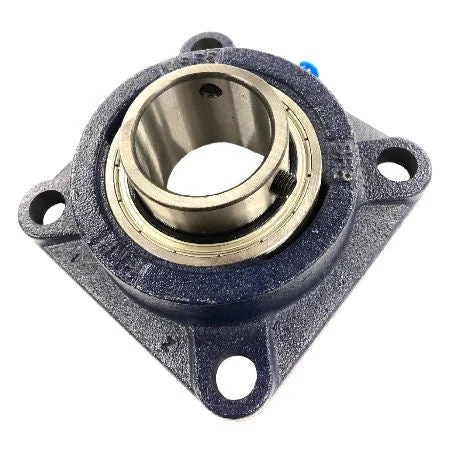

SF1 RHP 4 Bolt Cast Iron Flange Bearing Unit 1 inch Bore

Name: SF1 RHP 4 Bolt Cast Iron Flange Bearing Unit 1 inch Bore
SKU: 7067840839770
Availability: InStock

Sale!

Original price was: $40.00.Current price is: $12.00.

SKU: 7067840839770 Category: RHP

Description

These bearing housings have square flange which can be easily attached to a machine with four bolts.

Shaft diameter: 1 inch
RHP designation: SF1
Basic bearing insert: 1025
Casting group: 3

Dimensions (mm)
L: 95.3
H: 68.0
J: 70.00
G: 10
A: 28.6
A1: 38.84
A4: 11.1
B: 34.10
S: 14.33

ISO Load ratings (newtons)
Dynamic: 14000
Static: 7880

Rec max speed: 6250 rev/min

Mass: 1.0 kg
