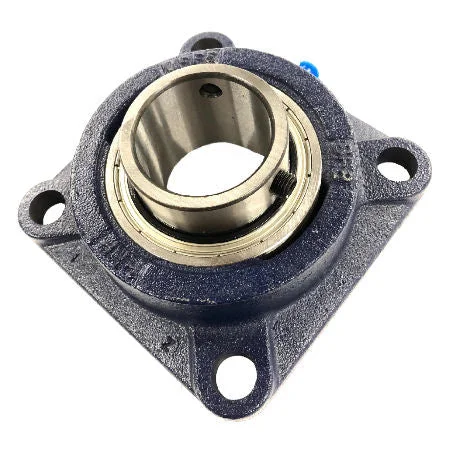

SF20 RHP 4 Bolt Cast Iron Flange Bearing Unit 20mm Bore

Sale!
2026_05_25_1080922

SF20 RHP 4 Bolt Cast Iron Flange Bearing Unit 20mm Bore

Original price was: $29.00.Current price is: $8.69.

SKU: 7067832975450 Category:

Description

These bearing housings have square flange which can be easily attached to a machine with four bolts.

Shaft diameter: 20mm
RHP designation: SF20
Basic bearing insert: 1020
Casting group: 2

Dimensions (mm)
L: 85.7
H: 60.3
J: 63.50
G: 10
A: 27.8
A1: 37.26
A4: 11.1
B: 31.00
S: 12.73

ISO Load ratings (newtons)
Dynamic: 12800
Static: 6650

Rec max speed: 6700 rev/min

Mass: 0.7 kg
