Description

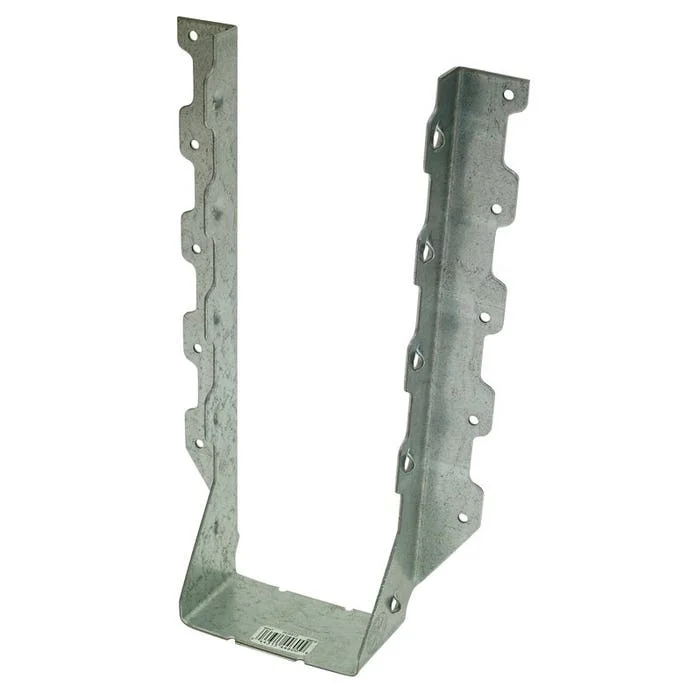

The HUS is designed for applications where higher loads are needed. This hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This feature allows for fewer nails, faster installation and the use of all common nails for the same connection.

Detailed Product Specifications

Manufacturer Part Number:HUS412

Unit of Measure:EA

Feature:Features double-shear nailing which distributes the load through two points on each joist nail for greater strength

Feature:Allows for the use of fewer nails, faster installation and the use of standard nails for all connections

Feature:Made from 14 ga steel

Feature:Galvanized (G90) for extra corrosion resistance

Feature:Can be installed after the beam is secured in place

Depth:2 in

Fastener Type:Screw

Finish:Galvanized/Zinc

Material:Steel

Mounting Type:Face

Size:4 x 12 in

Width:3-9/16
