Description

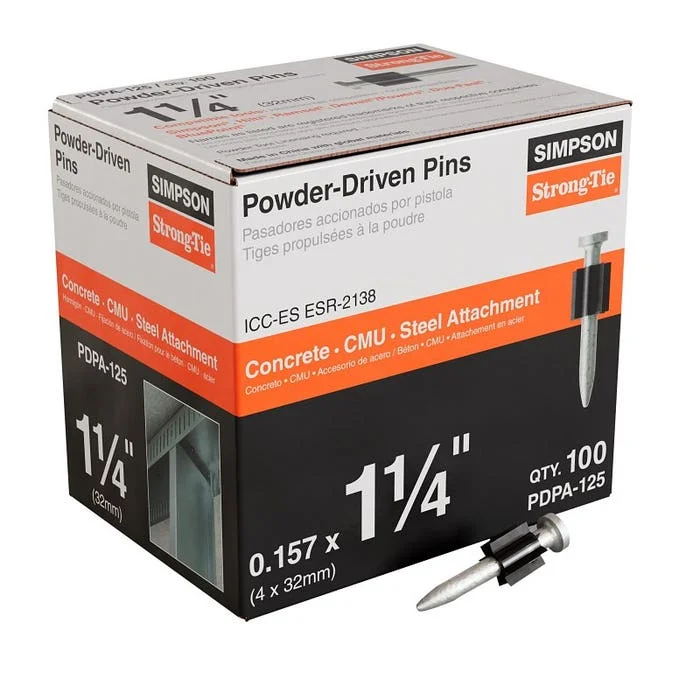

The PDPA is a hardened-steel, powder-actuated fastener designed to fasten building components to concrete, steel and CMU. The PDPA consists of a fastener with a 0.3 in Dia head and a 0.157 in Dia shank. The PDPA provides maximum jobsite productivity with fast installation.

Detailed Product Specifications

Manufacturer Part Number:PDPA-125

Unit of Measure:BX100

Feature:The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth

Feature:Designed for use with Simpson Strong-Tie® powder-actuated tool systems as well as other common tools

Feature:For A36 and A572 Grade 50 structural steel

Finish:Galvanized

Grade:50

Head Size:0.3 in

Length:1-1/4

Material:Steel

Shank Diameter:0.157 in

Suitable for:Simpson Strong-Tie PTP-27L PT-27 PT-22A and PT-22HA Tools
