Description

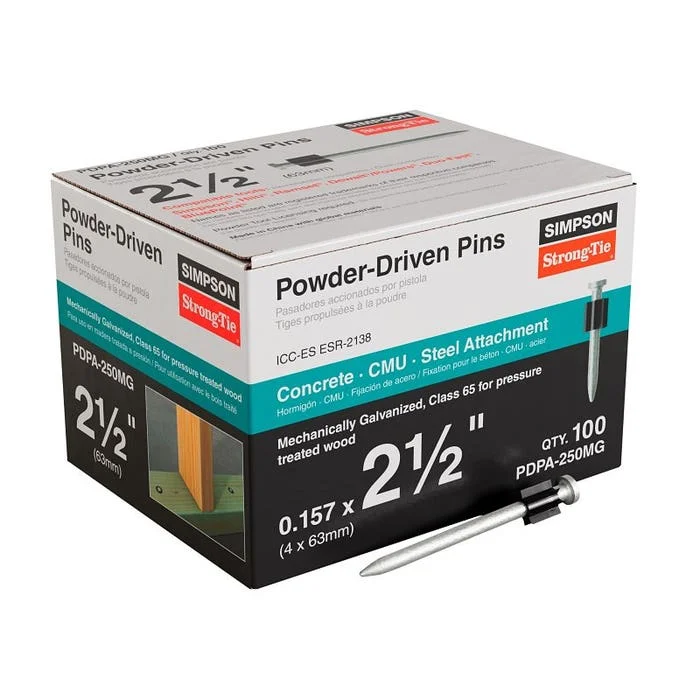

The PDPA is a hardened-steel, powder-actuated fastener designed to fasten building components to concrete, steel and CMU. The PDPA consists of a fastener with a 0.3 in Dia head and a 0.157 in Dia shank. The PDPA provides maximum jobsite productivity with fast installation.

Detailed Product Specifications

Manufacturer Part Number:PDPA-250MG

Unit of Measure:BX100

Feature:The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth

Feature:Designed for use with Simpson Strong-Tie® powder-actuated tool systems as well as other common tools

Feature:Mechanically galvanized for additional corrosion protection

Finish:Galvanized

Head diameter:0.3 in

Length:2-1/2

Material:Steel

Shank Diameter:0.157 in

Shank Type:Smooth

Suitable for:PTP-27L PTP-27S PT-27 PT-22P PT-22 PT-22GS PT-22H PT-27HD PT-22A PT-22HA Powder-Actuated Tools 721 D-60 U-2000 System 1 System 3 and Most Other Low Velocity Tools
