Description

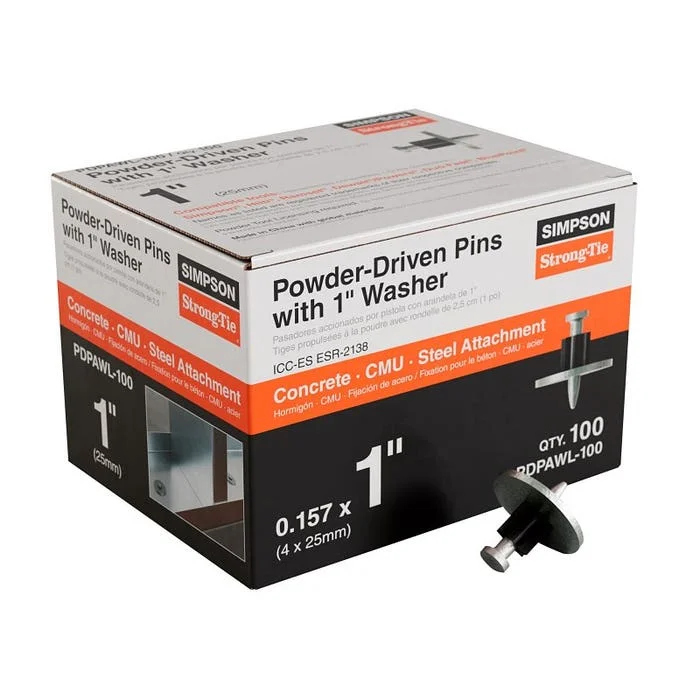

The PDPAWL is a powder-actuated washered pin designed to fasten building components to concrete, steel and CMU. The PDPAWL consists of a hardened-steel PDPA pin preassembled with a 1? washer that provides additional bearing surface for enhanced upload resistance. The PDPAWL is designed for use with Simpson Strong-Tie® powder-actuated tool systems as well as other common tools.

Detailed Product Specifications

Manufacturer Part Number:PDPAWL-100

Unit of Measure:BX100

Feature:The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth

Feature:Compatible with Simpson Strong-Tie® powder-actuated tool systems as well as other common tools

Feature:Mechanically galvanized carbon steel pin

Finish:Galvanized/Zinc

Head diameter:0.3 in

Length:1

Material:Steel

Shank Diameter:0.157 in

Suitable for:PTP-27L Premium Tool PTP-27S Premium Powder-Actuated Tool PT-27 PT-22APT-22HA General-Purpose Tools PT-22P Tool and Piston and PT-22GS Powder-Actuated Tools
