Description

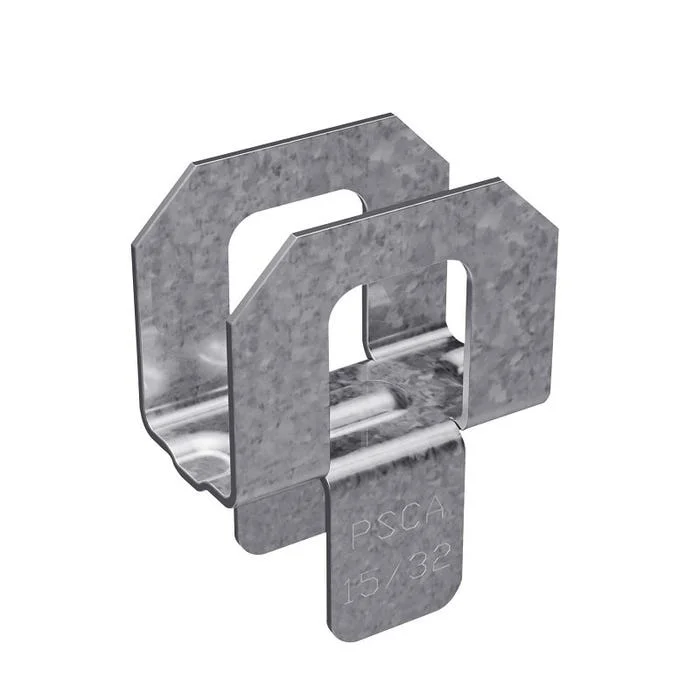

The PSCA is designed to brace unsupported sheathing edges when sheathing meets edge to edge without a rafter for support. This light sheathing clip provides a 1/8 in gap to address shrinkage and expansion of roof sheathing. Inserted over the edges of adjacent plywood panels, the PSCA reduces deflection and keeps panels even to maintain a level plane on the structure.

Detailed Product Specifications

Manufacturer Part Number:PSCA 15/32

Unit of Measure:BX250

Feature:Quick installation, no nails required

Feature:Provides a secure environment for sheathing

Feature:Support for shrinkage and expansion over time

Feature:Provides the 1/8 in space between plywood panels as recommended by the American Plywood Association

Feature:Use the same size sheathing clip as the panel thickness

Feature:Galvanized (G90) for extra corrosion resistance

Feature:Maximum spans may be reduced for low slopes or high uniform loads

Feature:For 15/32 in panel thickness

Finish:Galvanized

Material:Steel

Material Thickness:20 ga

Maximum Roof Span:32

Number of PC per Spans:1

Width:1
