Description

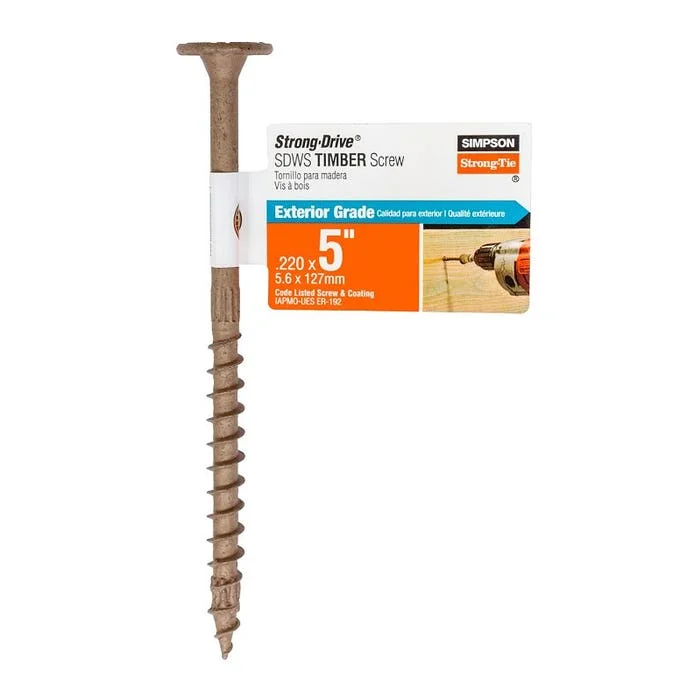

The Strong-Drive® SDWS timber screw is designed to provide an easy to install, high-strength alternative to through-bolting and traditional lag screws. This screw is ideal for the contractor and do-it-yourselfer alike. It is code listed in IAPMO UES ER-192 and meets 2018 and 2021 IRC® and IBC® code requirements for most common wood framing applications.

Detailed Product Specifications

Manufacturer Part Number:SDWS22500DB-RP1

Unit of Measure:EA

Feature:SawTooth® point ensures fast starts, reduces installation torque and eliminates the need for pre-drilling in most applications

Feature:Bold thread design provides excellent holding power

Feature:Under-head nibs offer greater control when seating the head

Feature:Large low-profile washer head provides maximum bearing area (3/4 in head Dia)

Feature:Size identification on all SDWS screw heads

Feature:Six-lobe T40 drive provides positive engagement that makes the screw easy to drive and improves bit life

Feature:Double-barrier coating provides corrosion resistance equivalent to hot-dip galvanization, making it suitable for certain exterior and preservative-treated-wood applications

Applicable Materials:Wood

Color:Tan

Drive Size:T40

Drive Type:6-Lobe Star

Finish:Double-Barrier Coated

Head Type:Washer

Length:5

Material:Steel

Package Quantity:1 PK

Point Type:SawTooth

Thread Length:2-3/4 in

Thread Type:Serrated
