Description

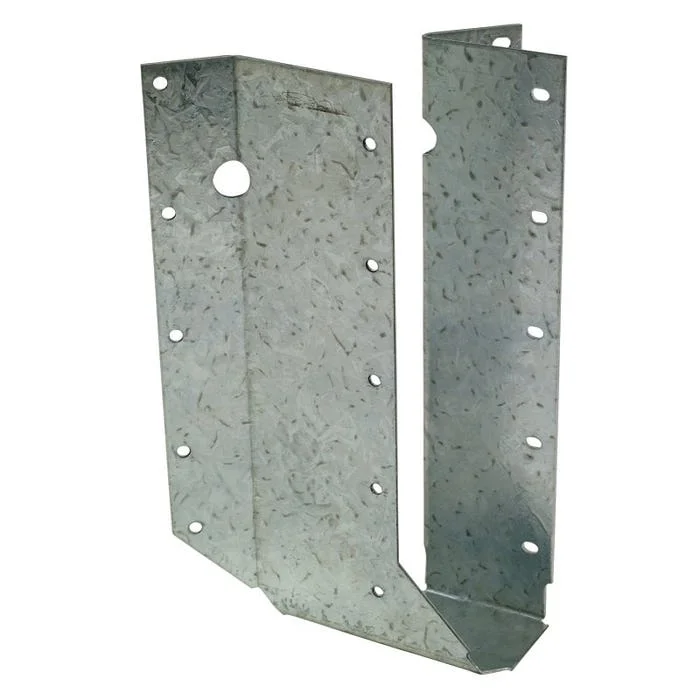

The SUR/L are 45 deg skewed hangers designed to support solid sawn and engineered-wood products used in wood construction. These U-shaped hangers encapsulate the top-flange of the joist, so no web stiffeners are required for standard installation.

Detailed Product Specifications

Manufacturer Part Number:SUR210Z

Unit of Measure:EA

Feature:Skewed right

Feature:Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist

Feature:These hangers cannot be modified but will accommodate a 40 to 50 deg skewed joist

Feature:Made from 16 ga steel

Feature:ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications

Feature:Features positive-angle nailing for engineered-wood sizes to prevent wood splitting and to speed installation

Depth:2 in

Fastener Type:Nail

Finish:ZMAX

Material:Steel

Mounting Type:Face

Skew Angle:45 deg

Width:1-9/16
