Description

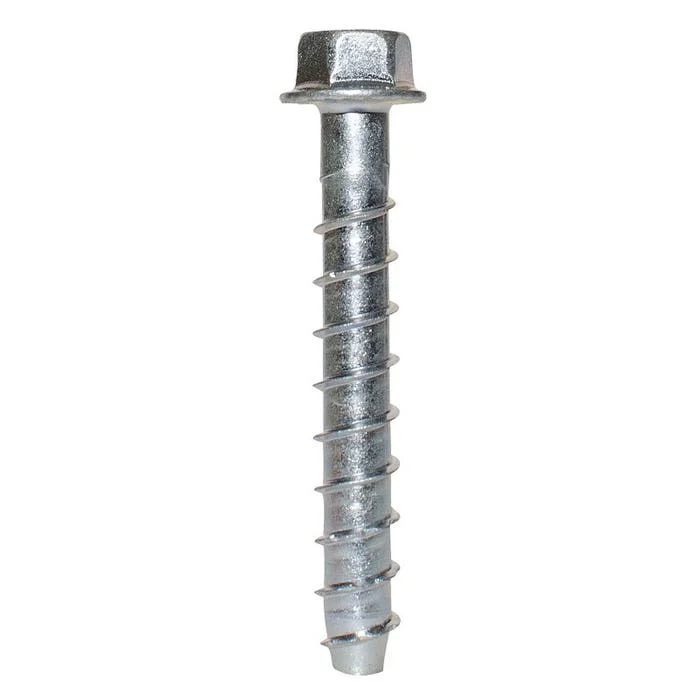

A high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. The Titen HD screw anchor is designed for a wide variety of applications such as sill plates, ledgers, post-bases, seating and other holdown applications. The screw anchor is easy to remove when used in temporary applications such as bracing and formwork, or when a fixture needs to be relocated. The stainless steel Titen HD is the optimal choice for applications in corrosive or extreme environments such as salt water, or when chemical or corrosive solutions are present.

Detailed Product Specifications

Manufacturer Part Number:THD37300HF1

Unit of Measure:EA

Feature:Qualified for static and seismic loading conditions

Feature:Thread design undercuts to efficiently transfer the load to the base material

Feature:No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits

Feature:Designed to install using standard-sized ANSI tolerance drill bits

Feature:Hex washer head requires no separate washer and provides a clean installed appearance

Feature:Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility

Feature:Zinc-plated carbon steel anchor can be used for temporary exterior applications

Color:Gray

Diameter:3/8 in

Drill Size:3/8 in

Drive Type:Hex

Finish:Zinc

Fixture Thickness:1/2 to 9/16 in

Head Type:Hex Washer

Length:3

Material:Carbon Steel

Minimum Clearance:1/2 in

Minimum Concrete Thickness:4 to 5 in

Minimum Embedment Depth:2-1/2 to 3-1/2 in

Shear Strength:4460 lb

Tensile Strength:10890 lb
