Description

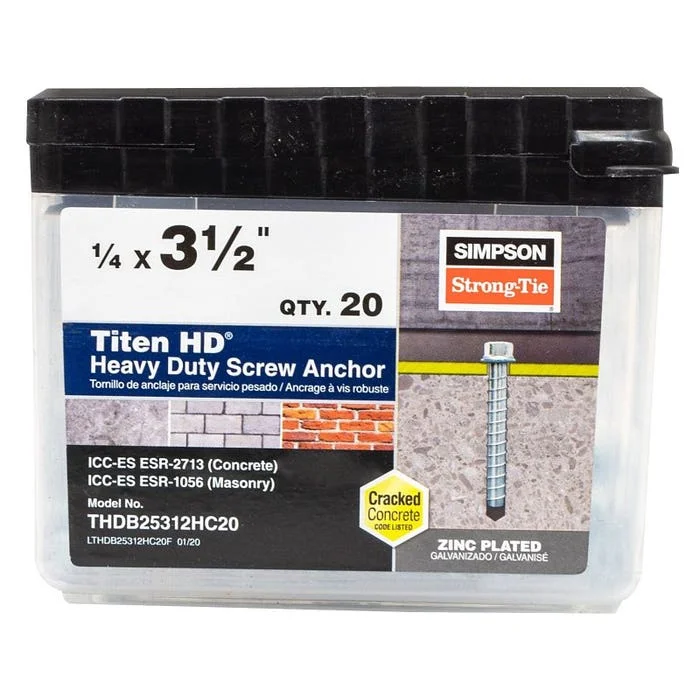

A high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. The Titen HD screw anchor is designed for a wide variety of applications such as sill plates, ledgers, post bases, seating and other holdown applications. The screw anchor is easy to remove when used in temporary applications such as bracing and formwork, or when a fixture needs to be relocated.

Detailed Product Specifications

Manufacturer Part Number:THDB25312HC20

Unit of Measure:BX20

Feature:Qualified for static and seismic loading conditions

Feature:Thread design undercuts to efficiently transfer the load to the base material

Feature:No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits

Feature:Hex washer head requires no separate washer and provides a clean installed appearance

Feature:Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility

Feature:Zinc plated carbon steel anchor can be used for temporary exterior applications

Feature:Caution: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity

Color:Silver

Diameter:1/4 in

Drill Size:1/4 in

Drive Type:6-Lobe

Finish:Zinc Plated

Head Type:Hex

Length:3-1/2

Material:Carbon Steel

Minimum Concrete Thickness:3-1/4 to 3-1/2 in

Minimum Embedment Depth:2-1/2 in

Shear Strength:1695 lb

Tensile Strength:125000 psi

Thread Length:3-1/8 in
