Description

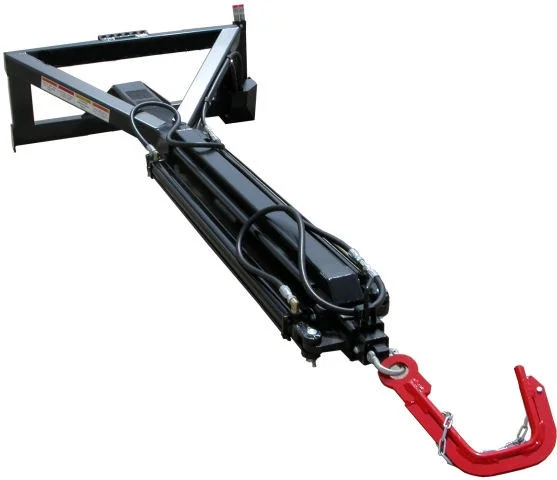

Our Industrial Series fully hydraulic Truss Boom is for use on all popular skid steer loaders. This Truss Boom makes lifting and elevating as simple as moving one hydraulic lever. With more maneuverability, this skid steer boom can go places that a hard to find and expensive boom truck cannot. The Truss Boomturns your skid steer loader into a compact, high-performance crane. With its growing arsenal of attachments, it’s becoming the “must have” add-on tool for construction, arboreal and farm use.

*Wear Items, Hoses, and Couplers are not covered under warranty

Standard Equipment: End “J” hook, two – 2″ X 48″ tie-rod cylinders, hydraulic hoses with standard flat face couplers.

Length: Retracts to 8’6″ and extends to 20′. Extends to 30′ in combination with vertical lift of machine.

Hydraulic requirements: 4 GPM at 600 PSI.

Lifting capacity: Depends on extension angle, length and skid steer model. You may also add any of the optional accessories depending on what you want to use theTruss Boom for such as Sheet Carrier (Short-5″ Peg), (Long-7.5″ Peg), Pallet Carrier or Storage Bin.

• Truss Boom assures the accuracy and speed on every job
• Securely holds materials in place for projects with critical tolerances.
• Dramatically reduces the time your crew needs to get the job done.

• Easily lifts and places trusses, shingles, hay bales more
• Reaches from 8’6″ to 30′
• Requires only one hydraulic outlet
• Fits most popular skid steer loaders

Specs:

• Telescope Tube Diameters: 6″, 5″, 4″ 3″

• Retracts to 8’6″ and extends to 20′.

• 4 GPM at 600 PSI.

• End hook, two – 2″ X 48″ tie-rod cylinders

• Capacity, Extended: 900 lbs.

• Weight of Truss Boom: 705 lbs

Work smarter with these customized add-on tools:

• Pallet Carrier – Transport loads of shingles, tools and miscellaneous items to your work site and your workers. Measures 32″ long X 25½” wide X 33″ high. Built of 2″ square tubing. Maximum load capacity is 600 lbs.
• Storage Bin with Adjustable Legs – Positions and holds tools where workers need them. Measures 48″ long X 24″ wide X 12″ deep.
• Sheet Carrier – Easily, quickly and safely lifts and moves standard-sized plywood, plasterboard and other cumbersome materials. Constructed of 1½” square tubing, upper and lower pegs available in 5″ or 7½” length. Length opens to 52½” and closes to 3″. Width opens to 57′ and closes 24″
