Description

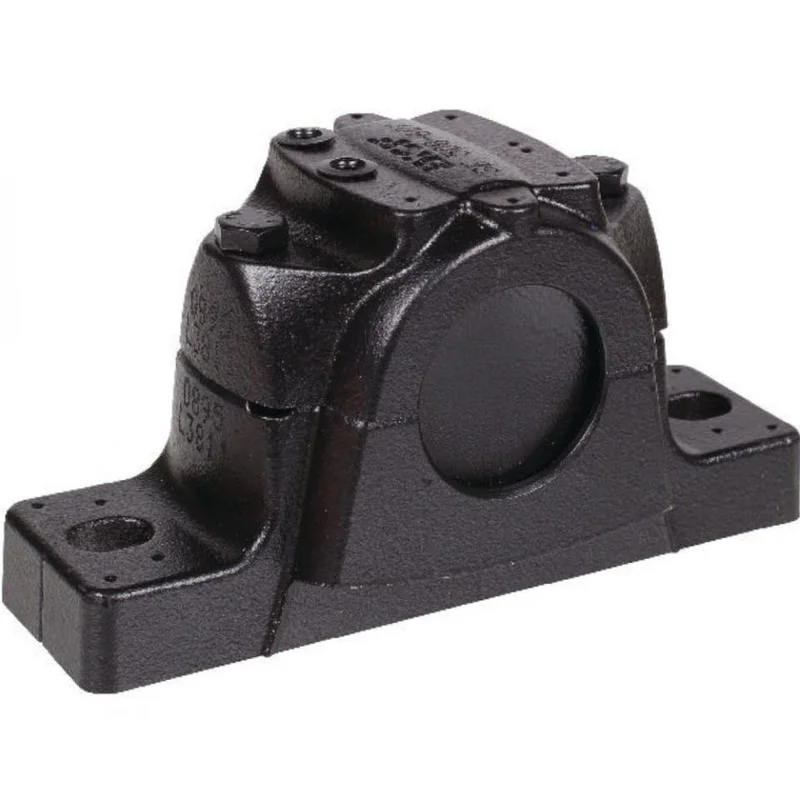

SKF SNL and SE plummer block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy.
SE plummer block housings are a new generation with a number of new features and a stronger material grade.

SNL and SE plummer block housings enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling costeffective bearing arrangements to be made.

Shaft da: 65mm

Housing Dimensions (mm)
A: 115m
A1: 80mm
H: 156mm
H1: 80mm
H2: 30mm
J: 230mm
L: 280mm
N: 24mm
N1: 18mm
G: 16mm

Bearing seating
Ca: 56mm
Da: 130mm

Properties
Housing type Plummer/pillow block
Housing configuration Two-piece
Mounting arrangement Through shaft/Shaft end
Number of bolt holes for fasteners 2
Material, housing Cast iron
Bearing housing seal type Without
Housing lubrication feature/possibility Grease

Mass: 7,00kg

Appropriate bearings and associated components
1215 K Self aligning ball bearing
H215 Adapter sleeve
FRB 15.5/130 Locating rings 2 per housing

2215 EKTN9 Self aligning ball bearing
H315 Adapter sleeve
FRB 12.5/130 Locating rings 2 per housing

22215 EK Spherical roller bearing
H315 Adapter sleeve
FRB 12.5/130 Locating rings 2 per housing

BS2-2215-2CSK/VT143 Sealed spherical roller bearing
H315 E Adapter sleeve
FRB 9/130 Locating rings 2 per housing

C2215 KTN9 CARB Toroidal roller bearing
H315 E Adapter sleeve
FRB 12.5/130 Locating rings 2 per housing

Seals
TSN515 L Four-lip seals
TSN515 A V-ring seals
TSN515 C Felt ring seals
TSN515 S Labyrinth seals
TSN515 ND Taconite heavy-duty seals

End cove
ASNH515-612
