Description

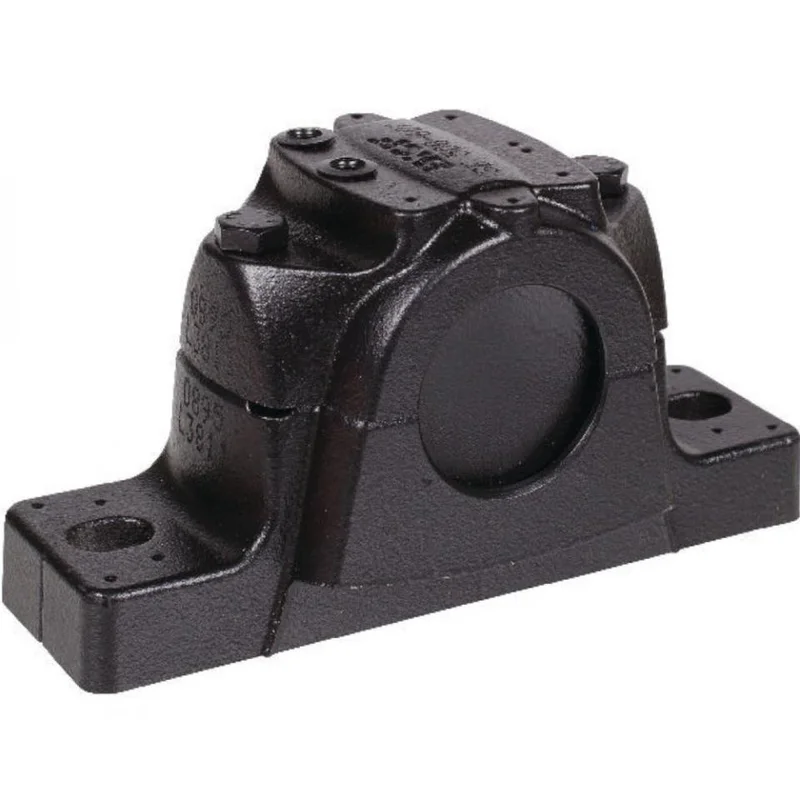

SKF SNL and SE plummer block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy.
SE plummer block housings are a new generation with a number of new features and a stronger material grade.

SNL and SE plummer block housings enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling costeffective bearing arrangements to be made.

Shaft da: 85mm

Housing Dimensions (mm)
A: 145mm
A1: 100mm
H: 212mm
H1: 112mm
H2: 35mm
J: 290mm
L: 345mm
N: 28mm
N1: 22mm
G: 20mm

Bearing seating
Ca: 68mm
Da: 170mm

Properties
Housing type Plummer/pillow block
Housing configuration Two-piece
Mounting arrangement Through shaft/Shaft end
Number of bolt holes for fasteners 2
Material, housing Cast iron
Bearing housing seal type Without
Housing lubrication feature/possibility Grease

Mass: 13,7kg

Appropriate bearings and associated components
1219 K Self aligning ball bearing
H219 Adapter sleeve
FRB 18/170 Locating rings 2 per housing

2219 KM Self aligning ball bearing
H319 Adapter sleeve
FRB 12.5/170 Locating rings 2 per housing

22219 EK Spherical roller bearing
H319 Adapter sleeve
FRB 12.5/170 Locating rings 2 per housing

C2219 K CARB Toroidal roller bearing
H319 E Adapter sleeve
FRB 12.5/170 Locating rings 2 per housing

Seals
TSN519 L Four-lip seals
TSN519 A V-ring seals
TSN519 C Felt ring seals
TSN519 S Labyrinth seals
TSN519 ND Taconite heavy-duty seals

End cove
ASNH519-616
