Description

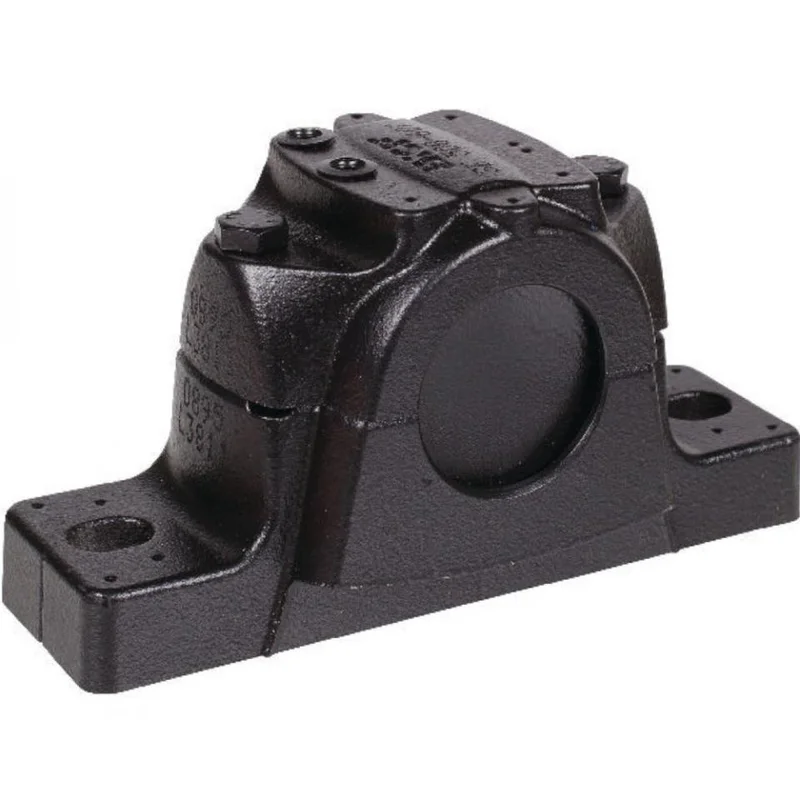

SKF SNL and SE plummer block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy.
SE plummer block housings are a new generation with a number of new features and a stronger material grade.

SNL and SE plummer block housings enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling costeffective bearing arrangements to be made.

Shaft da: 115mm

Housing Dimensions (mm)
A: 190mm
A1: 130mm
H: 290mm
H1: 150mm
H2: 50mm
J: 380mm
L: 445mm
N: 35mm
N1: 28mm
G: 24mm

Bearing seating
Ca: 90mm
Da: 230mm

Properties
Housing type Plummer/pillow block
Housing configuration Two-piece
Mounting arrangement Through shaft/Shaft end
Number of bolt holes for fasteners 2
Material, housing Cast iron
Bearing housing seal type Without
Housing lubrication feature/possibility Grease

Mass: 33,0kg

Appropriate bearings and associated components

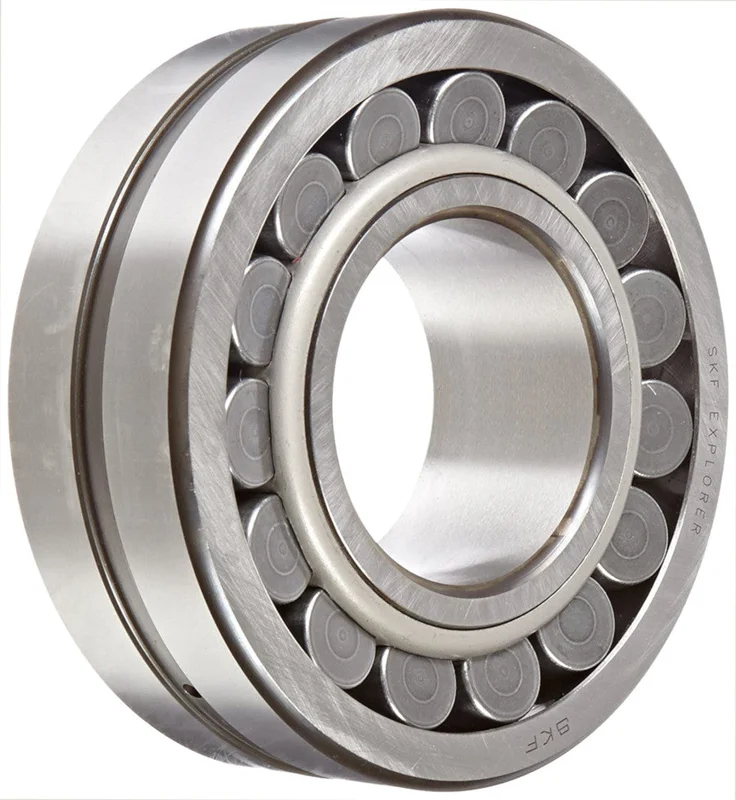

23226 CCK/W33 Spherical roller bearing
H2326 Adapter sleeve
FRB 5/230 Locating rings 2 per housing

23226-2CS5K/VT143 Spherical roller bearing
H2326 L Adapter sleeve
FRB 5/230 Locating rings 2 per housing

22226 EK Spherical roller bearing
H3126 Adapter sleeve
FRB 13/230 Locating rings 2 per housing

BS2-2226-2CS5K/VT143 Sealed spherical roller bearing
H2326 E Adapter sleeve
FRB 7.5/230 Locating rings 2 per housing

C2226 K CARB Toroidal roller bearing
H3126 L Adapter sleeve
FRB 13/200 Locating rings 2 per housing

Seals
TSN526 L Four-lip seals
TSN526 A V-ring seals
TSN526 C Felt ring seals
TSN526 S Labyrinth seals
TSN526 ND Taconite heavy-duty seals

End cove
ASNH526
