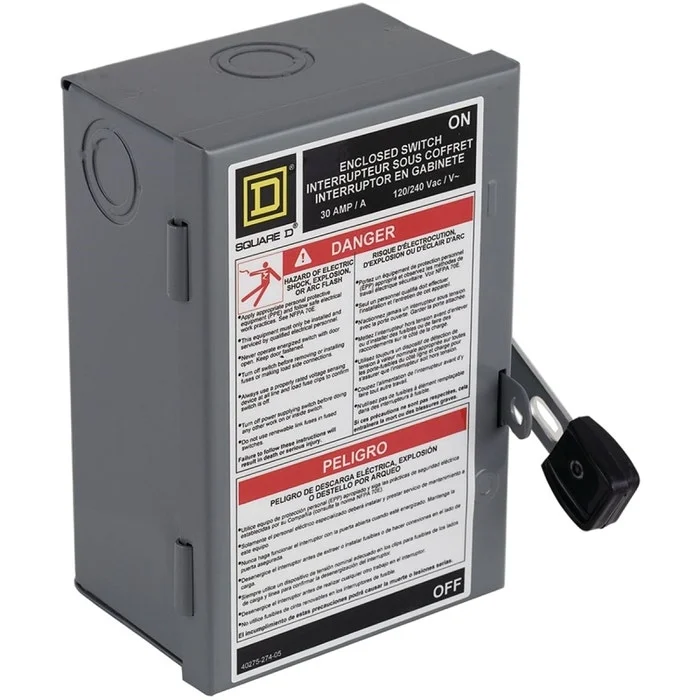

Description

Single phase, 2-pole, 3-wire, solid neutral, 120/240 VAC. Rated 3 hp at 240 VAC, with metallic enclosure. Typical uses include workshop or hobby room, water heater, furnace, garage or well pump disconnect. 10,000 AIC (short circuit rating) with plug fuses. Padlock attachment for lock off. 5 in x 7.63 in x 4 in. UL listed, meets NEMA standard KS1.

Detailed Product Specifications

Manufacturer Part Number:L211N

Unit of Measure:EA

Feature:The light-duty safety switch has visible blades and a ground lug as standard features

Feature:Available with plug or cartridge fuse holders

Feature:Grounding kit standard

Contact Configuration:DPST

Current Rating:30 A

Height:8.0 in

Mounting Type:Surface

Nema Rating:NEMA 1

Number of Poles:2

Number Of Wires:3

Short Circuit Rating:10 kA

Terminal Type:Lug

Type:Fusible

Voltage Rating:240 V

Width:5 in
