Description

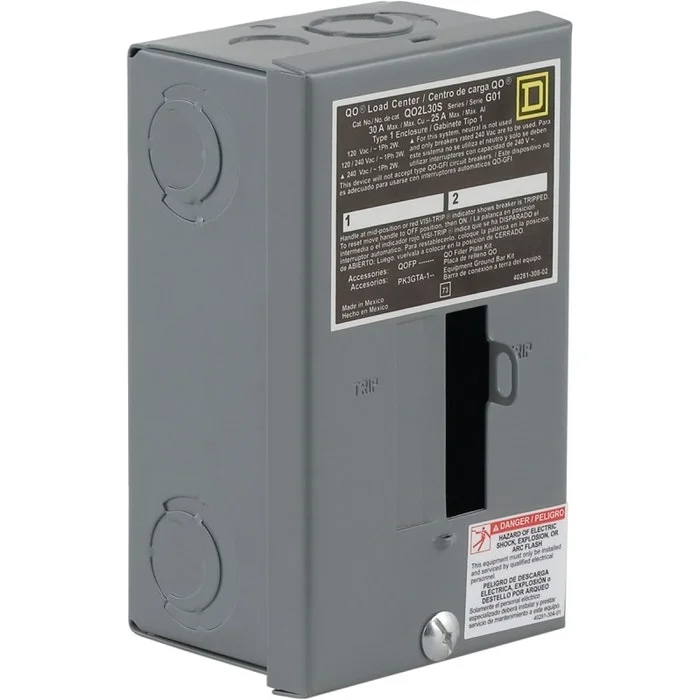

Main lug load center, indoor, 30 A, 2 space/2 circuits. Accommodates both overhead and underground feed applications. 1 in maximum knockout on the top and bottom of the enclosure. Comes with a doorless surface mount cover and factory installed main lugs. UL listed.

Detailed Product Specifications

Manufacturer Part Number:QO2L30SCP

Unit of Measure:EA

Feature:Indoor and outdoor versions

Feature:Separate flush or surface mount covers

Feature:Exclusive shielded copper bus features electro tin plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior

Feature:Straight-in mains wiring and uniform termination lugs help minimize service cable bends, cutting waste and saving installation time

Feature:Convertible mains allow fast field conversion between main breaker and main lugs to meet changing job requirements

Feature:QO three-phase main circuit breaker panels can be field upgraded to provide 100 kA short circuit current ratings

Feature:Single, captive interior mounting screw can’t be lost. Interior mounts quickly and can easily be removed during rough-in for paint or theft protection

Feature:Split branch neutral with up to 50% more terminations than UL requirement – simplifies wiring and reduces clutter

Feature:Indoor enclosures designed to rotate 180 deg to accommodate top or bottom service entrance feed, saving expensive service cable

Breaker/Load Center Type:Main Lug

Bus Bar Material:Aluminum

Cable Size:12 to 10 16 to 10 AWG

Color:Gray

Cover/Lid Type:Surface

Current Rating:30 A

Enclosure Type:NEMA 1

Finish:Baked Enamel

Interrupt Rating:10 kA

Mounting Type:Plug

Number of Circuits:2

Number of Phases:1

Number Of Spaces:2

Voltage Rating:120/240 V

Wiring Configuration:3-Wire
