Description

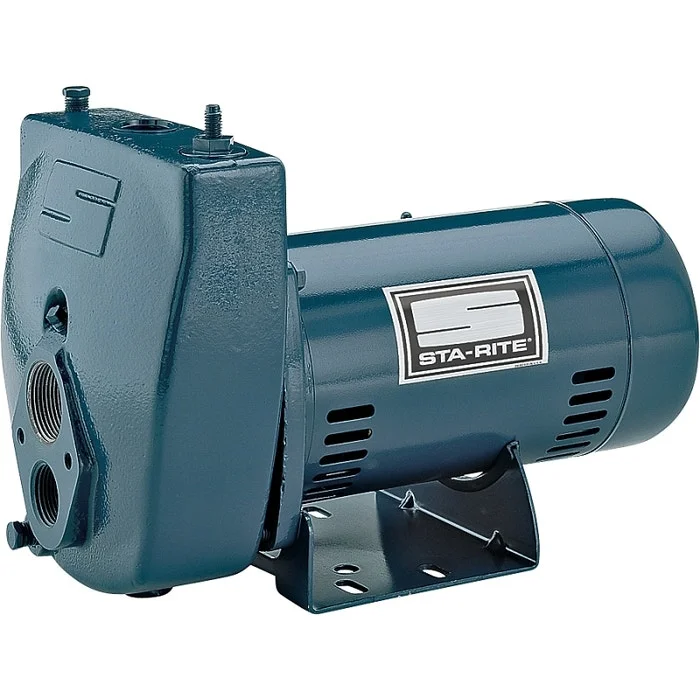

The ProJet™ SL convertible jet pumps offer a proven cast iron self-priming design. The ProJet™ SL convertible jets utilize the built-in regulators, offering easier priming and better range of performance from a complete line of shallow well, 4 in double pipe, 2 in and 3 in single pipe jet packages.

Detailed Product Specifications

Manufacturer Part Number:SLC-L

Unit of Measure:EA

Feature:Quality construction – close-grained cast iron pump body is rugged, one-piece unit, specially treated to resist corrosion, drain port provided for easy winterizing

Feature:Precision-molded diffuser – pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser

Feature:Motor windings – superior insulation materials protect against excessive moisture and contaminants to ensure prolonged motor life

Feature:Heavy-duty ball bearings – shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth quiet operation

Connection Size:1-1/4 in Suction 1 in Discharge

Connection Type:NPT

Current Rating:9.9/4.9 A

Flow Rate:26.8 gpm

Frequency Rating:60 Hz

HP Rating:0.5 hp

Material:Iron

Maximum Head:25 ft Shallow 70 ft Deep

Motor Type:Dual Voltage

Number of Phases:1

Pressure Rating:50 psi

Suitable for:Deep and Shallow Wells

Voltage Rating:115/230 V
