Description

AWS Adjustable Turf Trays for Symmetric 2-Post Lifts

Adjustable Width Turf Trays for Symmetric 2-Post Lifts
Universal Style Turf Trays for 2-Post Lifts
Drive Thru Width: 86-3/4″ to 121-3/4″

Adjustable Width Symmetric – AWS

2800 lb Capacity (1400 lb / Tray)

It couldn’t be any easier—very few, if any measurements are needed when ordering AWS style Turf Trays from SVI!

Special Note: If you’re looking for Adjustable Turf and Utility Vehicle Trays for Asymmetric 2-Post Lifts, check out SVI # BH-7357-02 AWA Adjustable Width Tray Attachments for Asymmetric 2-Post Lifts.

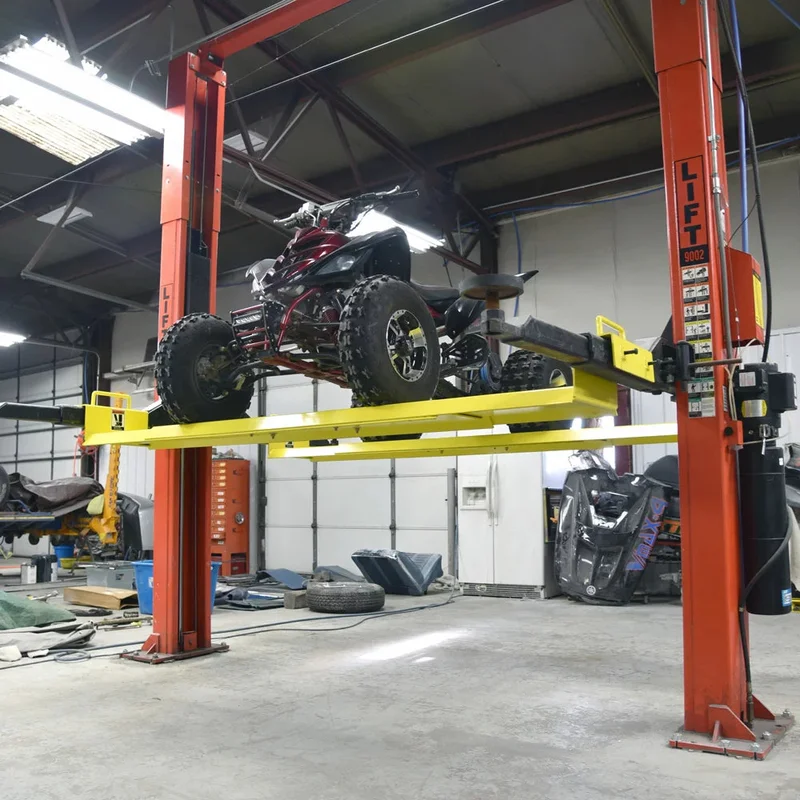

Turf and utility vehicle lifting trays are an ideal solution for any shop with an automotive lift that also services lawn mowers, ATVs, UTVs, or just about any other motorized vehicle that isn’t a car or a truck. SVI is the leader in standard and custom-made turf and utility vehicle attachments for lifts.

SPECIFICATIONS:

CAPACITY: 1400 lbs Total Equal Load Capacity at 72″ Centers per Tray when Fully Extended
ARM SIZE: 5″ to 3″ Arm Widths
MINIMUM OUTSIDE LENGTH: 98-3/4″
MAXIMUM OUTSIDE LENGTH: 134-1/8″
MINIMUM INSIDE LENGTH: 86-3/4″
MAXIMUM INSIDE LENGTH: 121-3/4″
PLATFORM METAL THICKNESS: 1/4″
OVERALL DIMENSIONS: 17-1/4″ W x 10-15/16″ H
ARM SLOT DIMENSIONS: 5-3/4″ W x 15-1/2″ L x 6-1/2″ H
*Specifications are subject to change.

Uses: Auto Lifts, Car Lifts, Light Truck Lifts, Vehicle Lifts, Van Lifts, Bus Lifts

SVI is a premier, well-known expert supplier, and your best quality and cost option for Turf and Utility Vehicle Lifting Solutions. SVI is your answer!
