Description

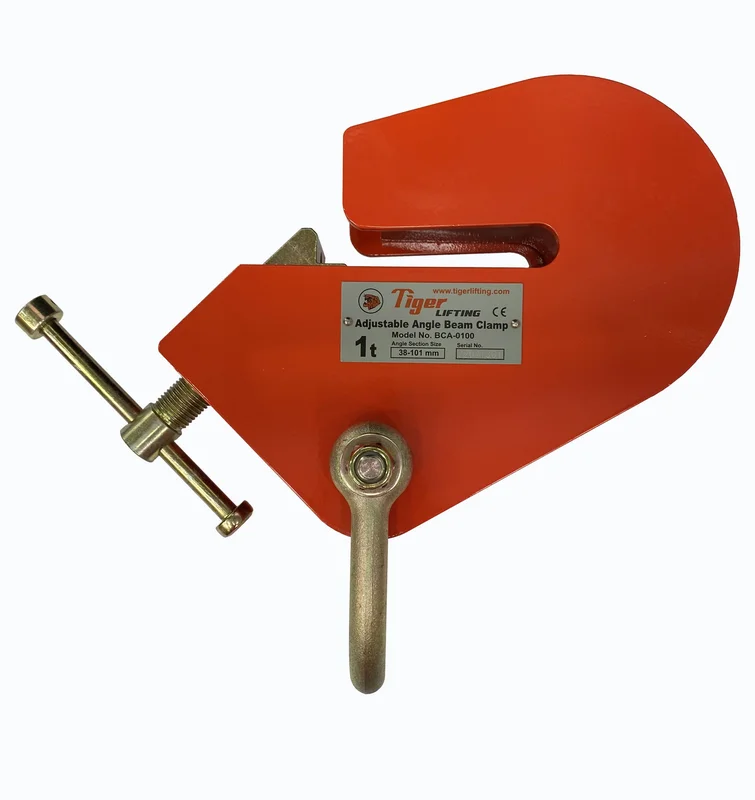

Tiger Angle Beam Clamp BCA

Tiger Adjustable Angle Beam Clamp Model No BCA. This BCA clamp serves as an anchor or lifting point when attached to an overhead steel angle section approved for lifting applications. This clamp can be used up to a maximum of 15° from the vertical.

Features

• 1.0t and 3.0t capacities available
• Quick and versatile rigging point for hoisting equipment when attached to overhead steel angle section approved for lifting applications
• Shackle suspension point
• V shaped clamping jaws ensures safe and secure grip
• Designed to accommodate a wide range of steel angle sections
• No tools required – integrated adjusting screw spindle
• Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
• Factor of safety: 5:1 for straight pulling and lifting, 4:1 at other angles stated

These units meet and exceed all the requirements within BS EN 13155:2003+A2:2009 and AS4991

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

Warning

Ensure the handle is fully tight before commencing operation.

Recommendation

We advise that structural calculations are carried out on all beams and supporting steel work by qualified engineering departments to ensure safe operation.
