Description

Low profile, “in line” designs save valuable floor space and comply with spill containment regulations.

Fifty-Five (55) gallon drums are big and bulky. That’s why they often get lined up along a factory or warehouse wall… to keep them out of the way until they are needed. So it only makes sense to create spill containment that can accommodate that sort of set up.

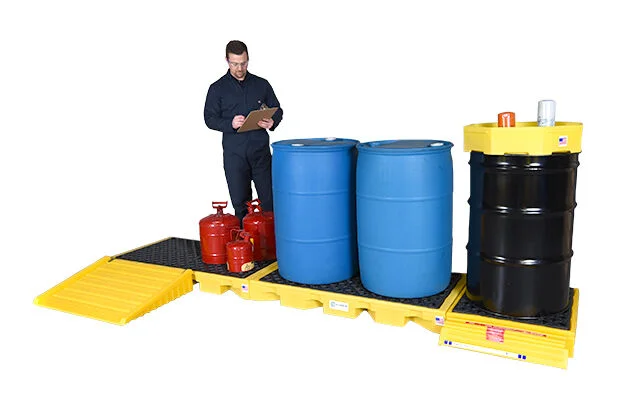

The Inline Model Ultra-Spill Decks do just that. Using 2-drum Spill Decks and connecting them with bulkhead fittings and bladder attachments, we can provide spill containment that “hugs the walls” and stays out of the way.

And because of the connection of multiple decks, and the additional containment capacity of the 66-gallon bladders, all of the systems meet the EPA and SPCC spill containment regulations.

Key Features:

• Standard Inline Models include 3-drum, 4-drum, 5-drum and 6-drum configurations.
• Narrow 25 7/8″ depth allows drums to be stored in a single row along facility walls – minimizes space requirements.
• Inline Models are pre-drilled and can be quickly assembled without tools. The bulkhead fittings “lock” connected modules together and allow spills to flow from one Spill Deck module to the next.
• Low profile design reduces safety and handling concerns found with taller spill containment pallets.
• Additional Spill Deck modules can be easily connected to an existing Inline configuration – allows more drums to be added to your spill containment area as storage needs grow.

Compliance:

• Meets SPCC and EPA Container Storage Regulation 40 CFR 264.175 Spill Containment Regulations.

Warranty:

• Protected by the industry’s strongest warranty – Five (5) years against any material or workmanship defects. Learn more.

Ultra-Inline Spill Decks

Part #	Description	Dimensions in. (mm)	Uniformly Distributed Loads lbs. (kg)	Containment Capacity gal. (L)	Weight lbs. (kg)
2360	3-Drum Inline Spill Deck	77⅞ x 25⅞ x 5¾ (1,978 x 657 x 146 )	4,500 (2,041)	99 (375)	67.0 (30.0)
2361	4-Drum Inline Spill Deck	104 x 25⅞ x 5¾ (2,642 x 657 x 146)	6,000 (2,722)	110 (416)	84.0 (38.0)
2333	5-Drum Inline Spill Deck	129⅞ x 25⅞ x 5¾ (3,299 x 657 x 146)	7,500 (3,402)	121 (458)	107.0 (49.0)
2334	6-Drum Inline Spill Deck	156 x 25⅞ x 5¾ (3,962 x 657 x 146 )	9,000 (4,082)	66 (250)	132.0 (60.0)

Ultra-Inline Spill Decks – Components

Part #	Description	Includes
2360	3-Drum Inline Spill Deck	(1) 1-Drum Spill Deck module, (1) 2-Drum Spill Deck module, (1) Bladder Attachment, (1) Bulkhead Fitting, (1) T-Strip
2361	4-Drum Inline Spill Deck	(2) 2-Drum Spill Deck modules, (1) Bladder Attachment, (1) Bulkhead Fitting, (1) T-Strip
2333	5-Drum Inline Spill Deck	(1) 1-Drum Spill Deck module, (2) 2-Drum Spill Deck module, (1) Bladder Attachment, (2) Bulkhead Fittings, (2) T-Strips
2334	6-Drum Inline Spill Deck	(3) 2-Drum Spill Deck module, (2) Bulkhead Fittings, (2) T-Strips

Options

Part #	Description	Dimensions in. (mm)	Uniformly Disributed Loads lbs. (kg)	Containment Capacity gal. (L)	Weight lbs. (kg)
1089	Loading Ramp	24 x 32 x 5¾ (610 x 813 x 146)	600 (272)		17.0 (8.0)
2317	Bladder Attachment (bladder bulkhead fitting)	25⅞ x 4⅝ x 5¾ (638 x 117 x 117)		66 (250)	4.0 (2.0)
6340	Replacement Bladder (includes bulkhead fitting)	65½ x 66 (1,664 x 1,676) Unfurled		66 (250)	2.0 (1.0)
2345	Bladder Pump	12 x 7 x 5½			3.0 (1.5)
