Description
Modular, 20-foot spill containment pans share containment, providing unlimited capacity
The Composite Model Ultra-Track Pans have been designed to provide railroad spill containment at industrial rail sidings and locomotive maintenance facilities. The twenty-foot long Pans can be connected and used for spill control for everything from small drips during maintenance to catastrophic spills from tanker cars.
Key Features:
- Easy installation – minimal site preparation (no excavation) required.
- Constructed with high strength, non-porous, corrosion resistant fiberglass for years of reliable service.
- Low profile: 20’ long x 4-7/8” high.
- Pandrol compatible.
- Railside gasket sealing system – prevents spills from leaking between Track Pans and rails.
- Optional flow through technology increases containment capacity for larger spills while minimizing cleanup of smaller spills.
- Optional drainage manifold allows Center and Side Pans to drain to oil/water separators, holding ponds, etc.

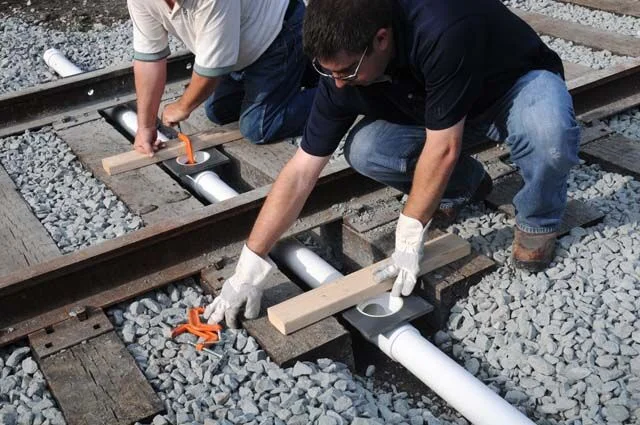

- Drainage manifold comes with clean out port to allow for removal of sludge blockages, etc. Installation requires minimal ballast removal.
- Optional polyethylene grating package available for safer foot traffic.
Warranty:
-
Protected by the industry’s strongest warranty – Five (5) years against any material or workmanship defects.Learn more.
Ultra-Track Pans, Composite Model
| Part # | Description | Dimensions in. (mm) | Containment Capacity gal. (L) | Weight lbs. (kg) |
|---|---|---|---|---|
| 7200 | Center Pan | 255 x 571⁄4 x 41⁄2 (6,477 x 1,448 x 114) |
209 (791) With grating: 191 (723) |
177 (80) |
| 7210 | Side Pan | 255 x 36 x 41⁄2 (6,477 x 914 x 114) |
98 (371) With grating: 89 (337) |
100 (45) |
Options
| Part # | Description |
|---|---|
| 7220 | Drain Manifold Center Sides |
| 7223 | Drain Manifold Center Only |
| 7225 | Rail Gasket |
| 0420 | Grating |
