Description
Protect drains and inlets WITHOUT lifting any grates
If speed of installation and convenience top the list of features you are looking for in a stormwater product, then the Ultra-Inlet Guard should be a serious consideration.
Heavy-duty geotextile materialeffectivelyremoves oil and sediment from rainfall. And strong, rare earth magnets sewn into each corner make installation quick and easy.
Key Features:
- Keeps dirt, sand, sediment, trash, and debris out of drains.

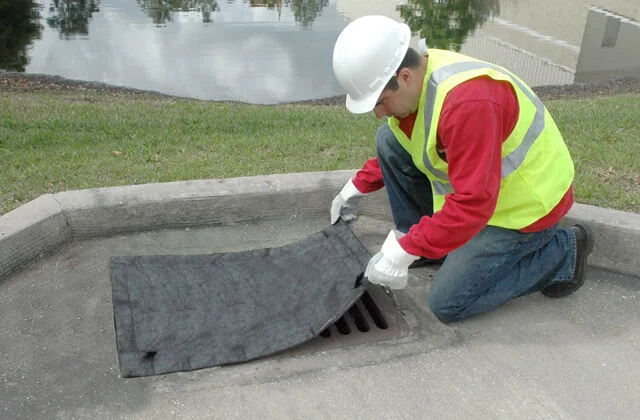

- Quick and easy installation using built-in magnets — no more lifting of heavy catch basin grates.
- Available in several sizes for street drains, combination drains and trench drains. Custom sizes also available.
- Heavy-duty, reinforced material (non-woven, polyester spun) allows up to 92 gal/ft2/min. through drains.
- Low profile design can be driven over and is unobtrusive to traffic and personnel.
- Ultra-Inlet Guard Plus also available. Includes built-in overflow port to help prevent flooding and/or ponding during heavy rainfall.
- Geotextile material helps remove oil and other hydrocarbons from stormwater flow.
Compliance:
- Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.
Ultra-Inlet Guard Inlet Guard Plus
| Part # | Dimensions in (mm) | Description | Weight lbs. (kg) |
|---|---|---|---|
| 9170 | 24 x 24 (610 x 610) | Oil Sediment | 3.0 (1.5) |
| 9160 | 24 x 24 (610 x 610) | Oil Sediment Plus | 3.0 (1.5) |
| 9171 | 24 x 36 (610 x 915) | Oil Sediment | 3.0 (1.5) |
| 9161 | 24 x 36 (610 x 915) | Oil Sediment Plus | 5.0 (2.5) |
| 9172 | 24 x 48 (610 x 1,220) | Oil Sediment | 3.0 (1.5) |
| 9162 | 24 x 48 (610 x 1,220) | Oil Sediment Plus | 5.0 (2.5) |
| Custom sizes available |
Ultra-Inlet Guard Inlet Guard Plus, Curb-Style
| Part # | Dimensions in. (mm) | Description | Weight lbs. (kg) |
|---|---|---|---|
| 9173 | 24 x 24 (610 x 610) | Curb-Style, Oil Sediment | 3.0 (1.5) |
| 9163 | 24 x 24 (610 x 610) | Curb-Style, Oil Sediment Plus | 5.0 (2.5) |
| 9174 | 24 x 36 (610 x 915) | Curb-Style, Oil Sediment | 4.0 (2.0) |
| 9164 | 24 x 36 (610 x 915) | Curb-Style, Oil Sediment Plus | 5.0 (2.5) |
| 9175 | 24 x 48 (610 x 1,220 | Curb-Style, Oil Sediment | 4.0 (2.0) |
| 9165 | 24 x 48 (610 x 1,220 | Curb-Style, Oil Sediment Plus | 5.0 (2.5) |
