Description
Contain silt, sediment and oil pumped out during dewatering operations
Draining swampy or low-lying areas is a common occurrence in construction.Unfortunately, pumping out the water from these areas also removes a lot of dirt, silt, mud, and debris along with the water.These contaminants can cause problems if they aresimplydischarged into a storm drain.

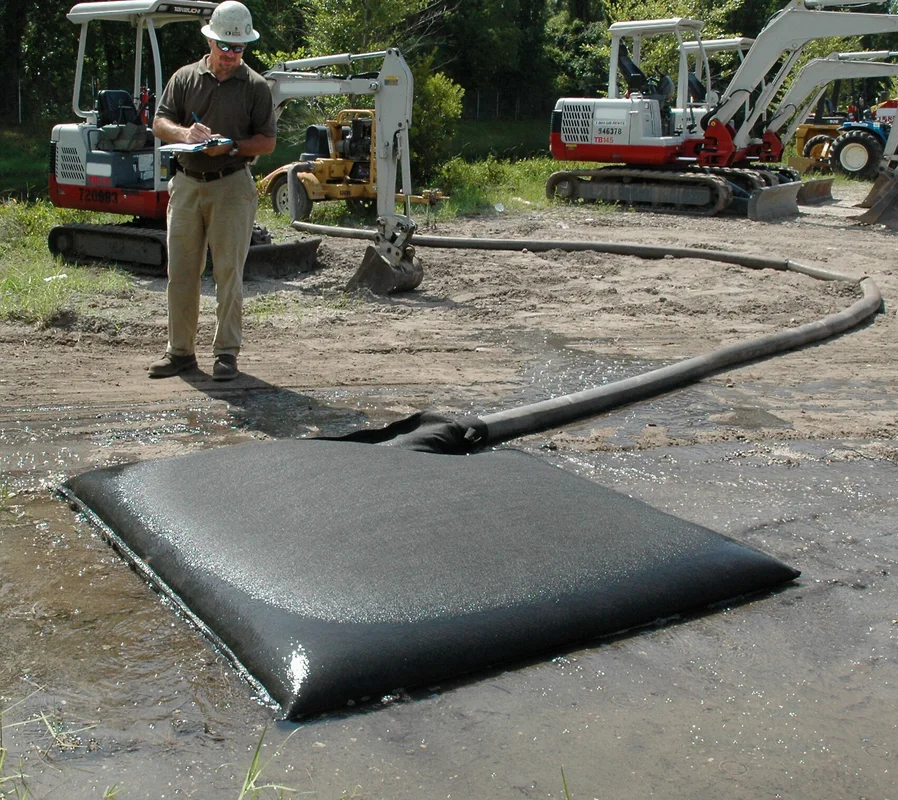

The Ultra-Dewatering Bag provides aneconomicaland effective solution.By pumping water into the bag, silt, dirt, sand and other pollutantsare trappedand filtered so only water escapes to the ground below or nearby storm drains.
Key Features:
- Detains both oil and sediment/silt, offering a combination of benefits not available in alternative dewatering bags.
- Standard and custom sizes available.
- Accommodates up to 4″ discharge hose. Optionalhose connectoravailable -makes connecting and disconnecting Dewatering Bags quick and easy.
NOTE: To increase the efficiency of filtration, place the bag on an aggregate or haybale bed to maximize water flow through the surface area of the bag.
Compliance:
- Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.
Ultra-Dewatering Bag
| Part # | Dimensions ft. (m) | Capacity cu. ft. (L) | Weight lbs. (kg) |
|---|---|---|---|
| 9729-O/S | 3 x 4 (0.9 x 1.2) | 6 (170) | 2.0 (1.0) |
| 9724-O/S | 6 x 6 (1.8 x 1.8) | 18 (510) | 5.0 (2.5) |
| 9723-O/S | 8 x 8 (2.4 x 2.4) | 32 (906) | 5.0 (2.5) |
| 9725-O/S | 10 x 15 (3.0 x 4.6) | 150 (4,247) | 21.0 (9.5) |
| 9727-O/S | 15 x 15 (4.6 x 4.6) | 225 (6,371) | 30.0 (14.0) |
Options
| Part # | Description | Weight lbs. (kg) |
|---|---|---|
| 9739 | Optional Hose Connector for 4″ hoses | 2.0 (1.0) |
