Description

Catch basin inserts (like theUltra-Drain Guard) are very effective and work well in many applications.

In known “hot spot” drains, however, something with more filtering capability may be necessary.Because these drains are more likely to encounter more concentrated contamination in stormwater, dedicated filter media can help in reducing pollutants.

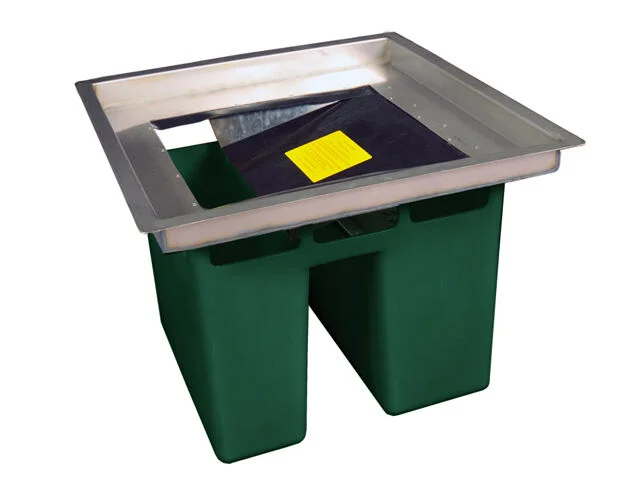

The Ultra-HydroKleen is considered a “true filter” by the EPA and forces water through up to three different filters before it exits into the stormwater system.

Advanced catch basin filter captures multiple pollutants

• Removes hydrocarbons, heavy metals, sediments and other organics from stormwater and industrial runoff.
• Exceeds 80% sediment removal efficiency. Patented filtration system allows different filter media to be used together to remove targeted pollutants.
• Choose a mix of filters to removes hydrocarbons / oil, chemicals, odor, phosphorus and heavy metals from water flow (must be ordered separately).
• A by-pass system prevents flooding or ponding during high-flow storm events.
• Excellent post-construction control for drains that are more susceptible to large concentrations of contaminants (“Hot Spots”).
• Units available for round or square catch basin grates. Custom sizes available.*.

Compliance:

• Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.
• Considered a “true filter” and has been verified by the EPA’s ETV program.Click hereto download the report.

Mix and match filter media depending on your specific needs.HydroKleen is the only catch basin filter that allows you to use more than one type of filter media.*

• Sorb 44— Used to remove oil and other hydrocarbons.
• Phos Filter— Excellent for removal of phosphorous.
• Activated Carbon— Excellent “polishing media”. Helps remove certain chemicals, hydrocarbons, and odors.
• Heavy Metal Removal— Custom filter media blend helps remove zinc, lead, copper, and other harmful, heavy metals.
• Other types of media available for custom applications.

SAMPLING OPTION

Convenient and effective means to obtain samples of the post-treatment effluent from the Ultra-HydroKleen tocomply with monitoring and testing requirements.

• Sampling Option provides standard HydroKleen with modifications to allow theUltra-Universal Sampler(sold separately) to pull “post-treatment” water samples from below the unit’s filters.
• Take real-time samples during storm events.
• Access area stays closed until a sample is desired.
• Simple sampling — No need to remove the Ultra-HydroKleen to take a sample (in many cases, even the grate can remain in place). Simply slide open the sampling port and insert the Universal Sampler.

Ultra-HydroKleens

Part #	Description	Fits Drains in. (mm)
9870	Flat Frame*	20 – 25 (508 – 635)
9871	Flat Frame*	26 – 33 (660 – 838)
9872	Flat Frame*	34 – 48 (863 – 1,219)
9873	Recessed Frame*	20 – 25 (508 – 635)
9874	Recessed Frame*	26 – 33 (660 – 838)
9875	Recessed Frame*	34 – 48 (863 – 1,219)
9478	Custom Frame*	Custom
9876	Sampling Option	–

* Note: Ultra-HydroKleen units are custom made to fit each individual catch basin. The final pricing is based onthe configuration of the frame (Flat or Recessed) and number of required Filter Media (2 or 3). This cannot bedetermined until the end user has submitted the completedMeasurement InstructionsandFilter Media Selectionforms.

Filter Media Blends

Part #	Description
9463	Media*: Activated Carbon
9462	Media*: Sorb 44
9461	Media*: Phos Filter
9460	Media*: Heavy Metal Removal
