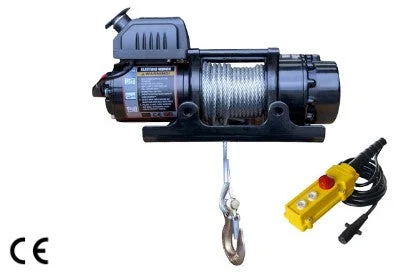

Description

The Winch Hoists are designed to supplement a lifting solution. For dedicated lifting solutions please view our electric or scaffold hoists.

High quality three stage planetary gearing ensure this is one of the quietest and smoothest hoists on the market.

• 12v Ref: 161-34-1
• 24v Ref: 161-34-2

Features

• Power in and Power out
• High Torque 1.95hp Motor
• HD Waterproof Contactors
• Full Steel Planetary Gearing
• Mount Plate as Standard
• Full Load Holding Brake

Accessories included

Specification

Voltage	12/24v
Max Load	408kg (900 lb)
Lift Height	14.5 / 7.25m (48 / 24ft)
Lift Speed	11.6 / 5.8m (38 / 19ft) p/min
Cable	6.4mm x 14.5m (0.25″ x 48 ft)
Weight	13 kg (29 lbs)
Power	1370 watts
Certification	CE certified
