Description

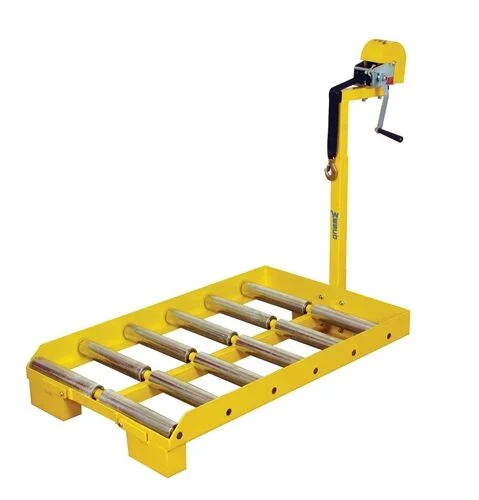

• For use with a standard pallet truck (sold separately).
• Pallet trucks easily locate in 6.75″ W x 3.5″ H fork pockets.
• One person can easily remove and replace forklift batteries.
• (12) 2.25″ diameter steel rollers.
• Swing tabs help to hold battery in place while on rollers.
• Winch with 2″ wide nylon belt and safety latch hook.
• Height to top of rollers 6.5″.
• Platform roller base: I.D. 26.75″ W x 43.25″ L. O.D. 27.25″ W x 43.625″ L.
• Adjustable winch height: Lowered – 29.625″. Raised – 35.50″.
• Fork pockets.

Specifications:

• Model: BAT-TC
• Capacity: 4000 lb
• Overall Width: 27.25″
• Overall Height: 41.5″
• Overall Depth: 55.875″
• Weight: 131 lb
• Width: 26.75″
• Length 1: 43.25″
• Inside Width Platform Roller Base: 26.75″
• Inside Length Platform Roller Base: 43.25″
• Outside Width Platform Roller Base: 27.25″
• Inside Length Platform Roller Base: 43.625″
• Number of Steel Rollers: 12
• Diameter Steel Roller: 2.25″
• Height to Top of Rollers: 6.5″
• Adjustable Winched Raised Height: 29.625″
• Adjustable Winched Lowered Height: 35.5″
