Description

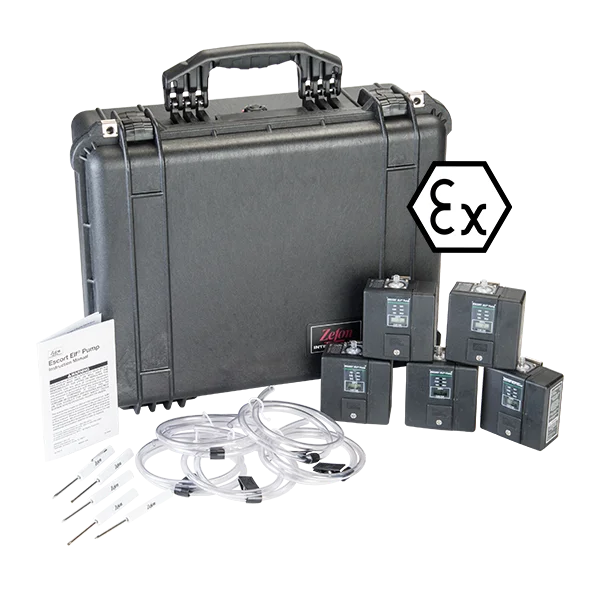

Zefon P5-ELF1-0-1-0-E PUMP, ESCORT ELF 5 PACK W/ SAMPLING LINE, NO CHARGER, EU/ATEX

Includes:

• 5- Escort ELF Pump
• 5- Sampling Line
• 1 – Manual

Escort ELF air sampling pumpsfeature a state of the art electronic laminar flow sensor to provide a constant flow control with ± 2.5% regulation of flow rate (from 1-3 lpm) with automatic compensation for changes in battery voltage, temperature, altitude, and sample load. An internal secondary standard calibrates the pump continuously and needs to checked against a primary standard only once per month (or every 200 hours for coal mine dust sampling).

Features:

• Patented electronic laminar flow control.
• Internal secondary standard calibrates the pump continuously, maintaining OSHA compliance.
• Check against a primary standard only once a month or every 200 hours for coal mine dust sampling.
• Inlet filter traps moisture and particular matter.
• Stainless steel-filled plastic case provides EMI/RFI protection.
• Rated IP65 for resistance to water and dust ingress.
• Exceptionally quiet operation.
• Flow-Fault Indicator shows any sample inlet blockage.
• Run/Hold feature allows “time out” during sampling process.
• Elapsed time readout and low-battery warning.
• Low flow and dual tube sampling available with Gemini Twin-Port Sampler.
• 2 Year Warranty.

Approvals

• NIOSHcertified for coal mine dust sampling (TC-74-030)
• MSHAcertified as intrinsically safe for underground use (Approval # 2G-3924-1).
• ULapproved as intrinsically safe for use in hazardous locations, Class I, Groups A, B, C, D; Class II, Groups E, F and G; Class III, Division I locations.
• ATEXApproved models available. See specifications for specific models.

Specifications:
