Description

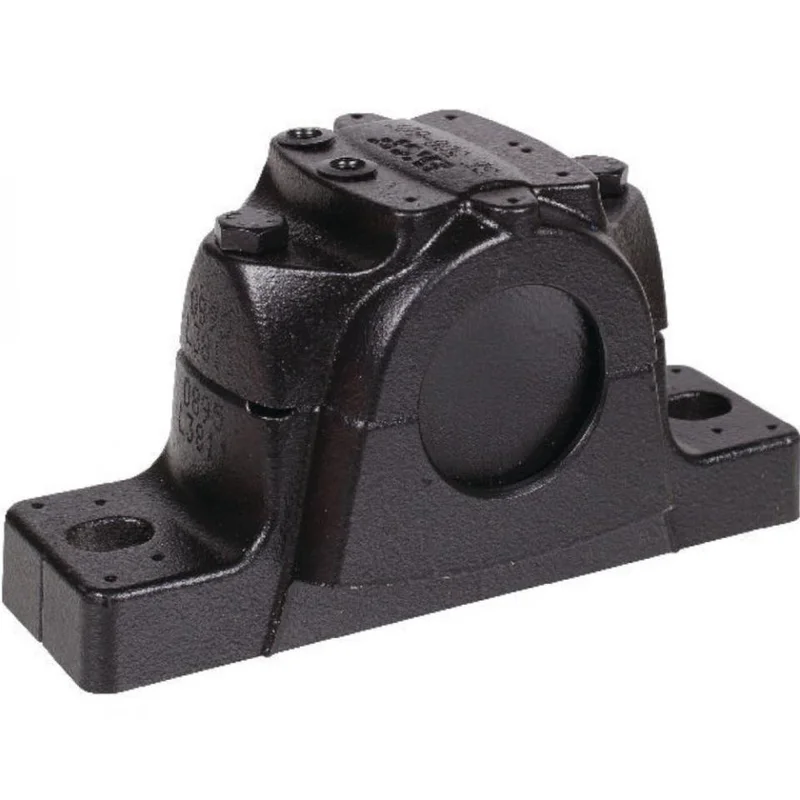

SKF SNL and SE plummer block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy.
SE plummer block housings are a new generation with a number of new features and a stronger material grade.

SNL and SE plummer block housings enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling costeffective bearing arrangements to be made.

Shaft da: 80mm

Housing Dimensions (mm)
A: 140mm
A1: 100mm
H: 194mm
H1: 100mm
H2: 35mm
J: 290mm
L: 345mm
N: 28mm
N1: 22mm
G: 20mm

Bearing seating
Ca: 65mm
Da: 160mm

Properties
Housing type Plummer/pillow block
Housing configuration Two-piece
Mounting arrangement Through shaft/Shaft end
Number of bolt holes for fasteners 2
Material, housing Cast iron
Bearing housing seal type Without
Housing lubrication feature/possibility Grease

Mass: 12,5kg

Appropriate bearings and associated components
1218 K Self aligning ball bearing
H218 Adapter sleeve
FRB 17.5/160 Locating rings 2 per housing

23218 CCK/W33 Spherical roller bearing
H2318 Adapter sleeve
FRB6.5/160 Locating rings 2 per housing

2218 K Self aligning ball bearing
H318 Adapter sleeve
FRB 12.5/160 Locating rings 2 per housing

22218 EK Spherical roller bearing
H318 Adapter sleeve
FRB 12.5/160 Locating rings 2 per housing

BS2-2218-2CSK/VT143 Sealed spherical roller bearing
H2318 E Adapter sleeve
FRB 8.5/160 Locating rings 2 per housing

C2218 K CARB Toroidal roller bearing
H318 E Adapter sleeve
FRB 12.5/160 Locating rings 2 per housing

Seals
TSN518 L Four-lip seals
TSN518 A V-ring seals
TSN518 C Felt ring seals
TSN518 S Labyrinth seals
TSN518 ND Taconite heavy-duty seals

End cove
ASNH518-615
